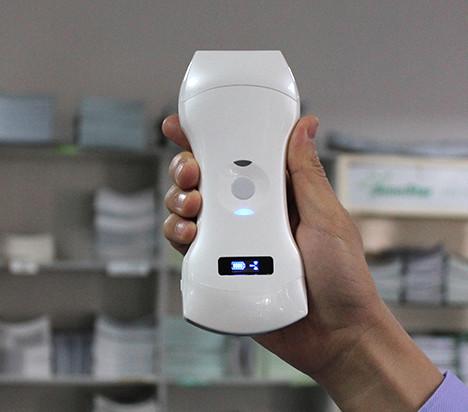

802.11n 5.0MHz Wireless Double Head Ultrasound Probe

Product Categories
Shenzhen Teveik Technology Co., Ltd.
Contact Now

802.11n 5.0MHz Wireless Double Head Ultrasound Probe

Brand Name : Teveik

Model Number : WCU04CPL

Certification : CE

Place of Origin : China

MOQ : 1

Price : 3500

Payment Terms : T/T

Supply Ability : 500sets/month

Delivery Time : 7-10

Packaging Details : 1pcs/box

Scanning mode : Convex& Phased+Linear array probe

Frequency : Convex& Phased 3.5/5.0MHz Linear 7.5/10MHz

Probe Radius/Length : Convex 60mm; Linear 40mm

Charging mode : wireless charging

Image/video Storage : storage on mobile phones, Tablet PC

Power Source : Electricity

Type : Doppler Ultrasound Equipment

Display Model : B,B/M,B+Color,B+PDI,B+PW

Elements : 192 elements

Battery wotking time : 2-3h according to scan mode

Working system : Android/ios/windows download for free

Contact Now

Wireless Double head Ultrasound probe Convex Phase and Linear Array Ultrasound Probe
Specification
Model
Convex & Phased+Linear array probe
Scan mode
B, B/M, B+COLOR, B+PDI, B+PW
Frequency
Convex&Phase 3.5/5MHZ Linear 7.5/10MHz
Display Depth
Convex&Phase 90-305mm Linear 20-100mm
Elements
192
Probe Radius/Length
Convex 60mm Linear 40mm
Wifi type
802.11n/2.4G
Image Adjust
B.GN(Bgain),D(depth) ; F(frequency); ENH(enhancement); TGC,DR(dynamicrange);Color/PW: GN,PRF, WF, Steer, Box
Measure
B:Length, Area, Circumference, GA,(CRL.BPD, GS, FL,HC, AC);B+M:hEART rate, Time, Distance, B-PW: Velocity, Hear Rate(2) S/D
Cinplay
Auto and manual, frames can set as 100/200/500/1000
Puncture assist function
in-plane puncture guide line, out-of-plane puncture guide line
Image/video Storage
Store on mobile phoes,Tablet PC
Power
Built-in lithium battery, replaceable
Battery working time
2-3h according to scan mode
Charging mode
wireless charging
Bootup
Platform dependent generally seconds
Working system
Android, IOS, Windows
Standard configuration
Host 1pcs
Dimensions
156(w)*60(d)*20(h)mm
Packing Size
185(w)*105(d)*55(h)mm
Net weight
250g
Gross Weight
750g
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
Packing & Delivery
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
802.11n 5.0MHz Wireless Double Head Ultrasound Probe
FAQ
Warranty:

1)there is any quality problem when you get the products, we will send you the replacement .

The advantages of our products:

1) Attractive design, high quality and reasonable prices
2) Advanced processing technology
3) Advanced detection equipment
4) high quality raw material

Delivery details:

1) Our production cycle:
Item will be shipped within 3-7 working days after we get your Payment, We are always serious on the delivery time, all orders
will be checked by us carefully to make sure there is no delay on the shipment.

2) Shipping Methods:
1. a) If order is not very big, we will send you by UPS, DHL, FEDEX, or TNT. Tracking number will be advised after delivery, all
of express lead time is about 3-5 working days.
2. b) If order is big, we will advise you use Air Freight or Sea freight.


Payment details:

1) Payment terms:
1. a) 100% in advance for Small value .
2. b) 50% deposit, 50% before delivery for big value.


2) Acceptable for T/T, Western union, Paypal, L/C etc.
About Sample

1) if you have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one pc of sample,
We can produce it for you .

Provide OEM service

1) if you have new design or idea, we can support you .
2) If you have the sample, we can produce it for you .
3) If you have the drawing , we can produce the product according to your drawings

Our leading products list :

1) SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG Electrode
5) Electrosurgical pencil and Electrosurgical pad
6) IBP Cable and IBP transducer
7) Temperature Probe and disposable Temperature Probe
8) NIBP Cuff and NIBP hose(NIBP tube)
9) Fetal transducer
10) disposable CTG belt and reusable CTG belt
11) EEG Cable and EEG hat (EEG cap)
12) original Ultrasound probe, compatible ultrasound probe, repair ultrasound probe
13) Needle Guide for Ultrasound probe
14) Pulse Oximeter
